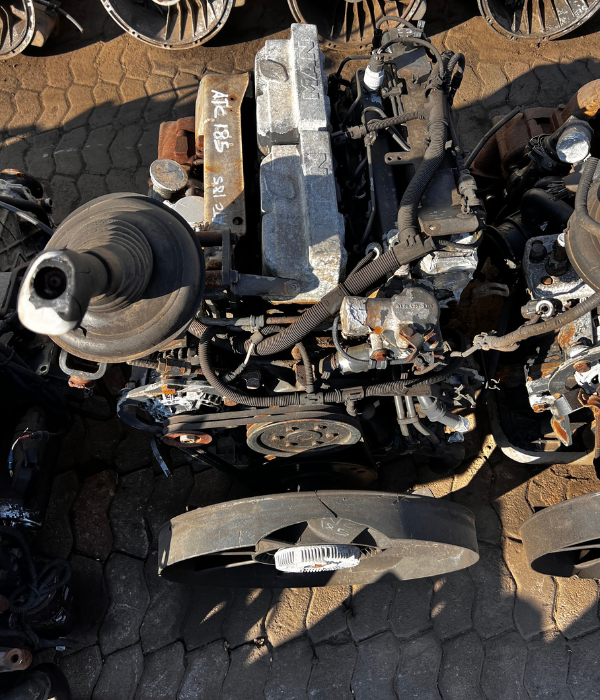

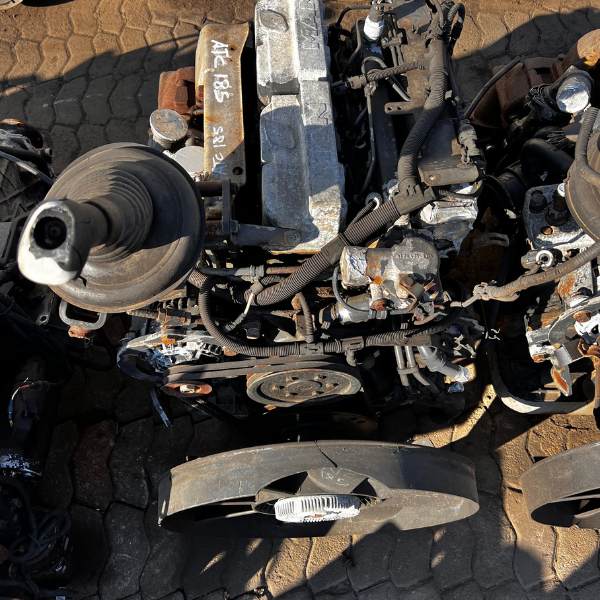

MAN D0824 Engine

Key Specifications

• Configuration: Inline 4-cylinder, 4-stroke diesel

• Displacement: 4.6 litres (≈ 4580 cc)

• Power Output: Typically ranges from 150 hp up to 220 hp (depending on version and emission stage)

• Torque: Around 600 Nm to 850 Nm

• Fuel System: Common Rail Direct Injection with full electronic control

• Turbocharging: Equipped with a turbocharger and an intercooler for strong performance at low revs

• Emissions: Available in Euro 3, Euro 4, Euro 5, and Euro 6 versions using EGR and SCR systems

Performance Highlights

• Compact and lightweight design, making it suitable for medium trucks and city buses

• Fuel-efficient operation thanks to electronically controlled common rail injection

• Strong low-RPM torque, ensuring responsive acceleration even under load

• Durable and reliable, with long service intervals and low lifecycle costs

• Adaptable to strict emissions standards, from Euro 3 up to Euro 6

Typical Applications

The MAN D0824 engine is commonly found in:

• MAN medium-duty trucks (such as the TGL and lighter TGM models)

• City buses and intercity buses

• Municipal and utility vehicles (waste collection trucks, service vehicles)

• Industrial and construction equipment in some applications
