Key Specifications

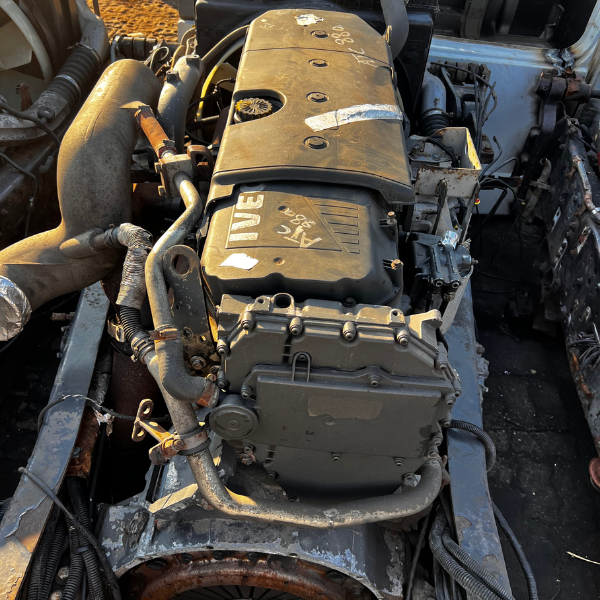

The Cursor 13 is a 6-cylinder, 4-stroke diesel engine with a bore of 135 mm and a stroke of 150 mm, resulting in a total capacity of nearly 12,900 cc. Power ratings range from 480 hp up to 580+ hp, with torque outputs between 2,200 Nm and 2,500+ Nm, depending on the version.
Equipped with Variable Geometry Turbo (VGT) or two-stage turbocharging (in certain Euro VI versions), the Cursor 13 provides continuous power delivery and outstanding torque at low RPMs. Its common rail injection system is electronically controlled, ensuring precise fuel management for maximum efficiency.
The engine meets Euro 3 through Euro 6 emission standards using SCR technology (Selective Catalytic Reduction) with AdBlue, and on newer versions, advanced aftertreatment systems with Diesel Particulate Filters (DPF).
Performance Highlights
-
Massive torque from just above idle, ensuring smooth pulling power for the heaviest loads.
-
High horsepower range up to 580+ hp, suitable for long-haul and extreme-duty trucks.
-
Strong engine braking with IVECO’s Turbo Brake (ITB), reducing wear on service brakes during downhill driving.
-
Proven reliability in the toughest working conditions, including construction, off-road, and international long-haul freight.
-
Optimised fuel consumption thanks to electronic management and advanced turbocharging systems.
Typical Applications
The Cursor 13 is found in IVECO’s heaviest trucks and machinery, including:
-
IVECO Stralis Hi-Way long-distance haulage trucks
-
IVECO Trakker for extreme off-road and construction applications
-
IVECO S-Way new-generation long-haul trucks
-
Large luxury coaches and buses require maximum power and reliability
